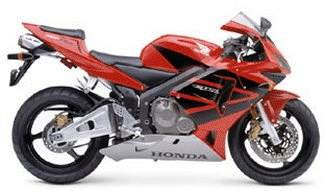

The CBR600RR'03 was sold in one of three colors: Pearl Yellow; Black; or
Red/Black.
Engine: 599cc DOHC liquid-cooled inline four-cylinder four-stroke
Bore and stroke: 67.0 x 42.5 mm
Compression ratio: 12.0:1
Transmission: Close-ratio six-speed
Final drive: O-ring chain
Front suspension: 45mm HMAS™ cartridge fork with spring-preload, rebound-
and compression-damping adjustability
Rear suspension: Unit Pro-Link HMAS™ single-shock with spring-preload,
compression- and rebound-damping adjustability
Front brake: Dual full-floating discs with four-piston calipers
Rear brake: Single-disc with single-piston caliper
Front tire 120/70ZR-17 radial
Rear tire: 180/55ZR-17 radial
Wheelbase: 1390mm (54.7 in.)
Seat height: 820mm (32.3 in.)
Dry weight: 168 kg (370 lb)
Fuel capacity: 18 liters
|
