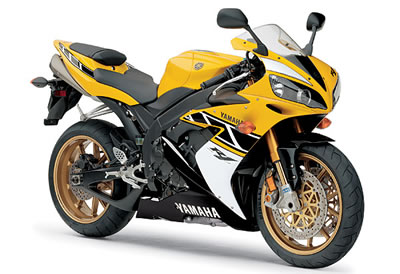

The Yamaha YZF-R1 2006SP Model Specs

	Yamaha YZF-R1 SP 2006: technical specifications
	GENERAL Model Yamaha YZF-R1 SP 2006 Category Sport ENGINE Type 998 cc, liquid cooled, 4 - cylinders in line, 4-stroke Bore x stroke (mm) 77 mm x 53.6 mm Compression ratio 12.3:1 Valves DOHC, 5 valves per cylinder Fuel system Fuel injection, dual-valve throttle bodies with motor-driven secondary valves Ignition Digital TCI Power 175 hp (130.5 kW) @ 12500 rpm Torque 107.1 Nm (79 ft. lbs) @ 10500 rpm Lubrication system Wet sump TRANSMISSION Clutch multi-plate clutch Gearbox 6 speed Ratios 1e 38/15 (2.533), 2nd 33/16 (2.063), 3th 37/21 (1.762), 4th 35/23 (1.522), 5th 30/22 (1.364), 6th 33/26 (1.269) Primary drive 65/43 (1.512) Final drive Chain, 45/17 (2.647) Starting system Electronic CHASSIS Frame Deltabox V out of aluminium Front suspension 43mm Special �hlins inverted telescopic fork w/adjustable preload, separate high & low-speed compression damping, rebound damping, 120 mm travel Rear suspension Single �hlins shock w/adjustable preload, separate high & low-speed compression damping, rebound damping, 130 mm travel Rake / Trail 24 degrees / 97 mm (3.8 inches) WHEELS Front wheel 3.50 Rear wheel 6.00 Front tyre 120/70-17 Back tyre 190/50-17 Front brakes dual 320 mm discs with radial-mounted 4-piston calipers Rear brakes single 220 mm disc with 1-piston calipers DIMENSIONS Overall length 2085 mm (82.1 inches) Overall width 720 mm (28.3 inches) Overall height 1105 mm (43.5 inches) Seat height 835 mm (32.9 inches) Wheelbase 1415 mm (55.7 inches) Ground clearance 135 mm (5.3 inches) Fuel capacity - reserve 18 l (4.8 gallon US) Dry weight 174 kg (383.6 pounds) The above specifications are subject to change without notice. Trademarks and logos of third parties used in the Site are exclusive property of the respective owners.
