GENERAL
|
Model
|

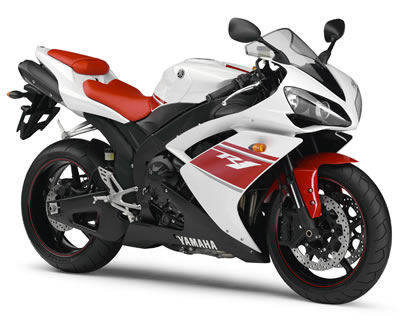

Yamaha YZF-R1 2008
|
Category
|
Sport
|
ENGINE
|
Type
|
998 cc, liquid cooled, 4 - cylinders in line, 4-stroke
|
Bore x stroke (mm)
|
77 mm x 53.6 mm
|
Compression ratio
|
12.7:1
|
Valves
|
DOHC, 4 valves per cylinder
|
Fuel system
|
Fuel Injection with YCC-T and YCC-I
|
Ignition
|
Digital TCI
|
Power
|
180 hp (134.2 kW) @ 12500 rpm
|
Torque
|
112.7 Nm (83.1 ft. lbs) @ 10000 rpm
|
Lubrication system
|
Wet Sump
|
TRANSMISSION
|
Clutch
|
multi-plate slipper clutch
|
Gearbox
|
6 speed
|
Ratios
|
1e 38/15 (2.533), 2nd 33/16 (2.063), 3th 37/21 (1.762), 4th 35/23 (1.522), 5th 30/22
(1.364), 6th 33/26 (1.269)
|
Primary drive
|
65/43 (1.512)
|
Final drive
|
Chain, 45/17 (2.647)
|
Starting system
|
Electronic
|
CHASSIS
|
Frame
|
Aluminium die-cast Deltabox
|
Front suspension
|
43mm inverted telescopic fork w/adjustable preload,
compression damping, rebound damping, 120 mm travel
|
Rear suspension
|
Single shock w/piggyback reservoir; adjustable for
hi-/lo-speed compression damping, rebound damping, spring preload, 130 mm
travel
|
Rake / Trail
|
24 degrees / 101.6 mm (4 inches)
|
WHEELS
|
Front tyre
|
120/70-17
|
Back tyre
|
190/50-17
|
Front brakes
|
dual 310 mm discs with radial-mounted 6-piston
calipers
|
Rear brakes
|
single 220 mm disc with 1-piston calipers
|
DIMENSIONS
|
Overall length
|
2060 mm (81.1 inches)
|
Overall width
|
720 mm (28.3 inches)
|
Overall height
|
1110 mm (43.7 inches)
|
Seat height
|
835 mm (32.9 inches)
|
Wheelbase
|
1415 mm (55.7 inches)
|
Ground clearance
|
135 mm (5.3 inches)
|
Fuel capacity - reserve
|
18 l (4.8 gallon US)
- 3.4 l (0.9 gallon US)
|
Dry weight
|
177 kg (390.2 pounds)
|
